Function description:

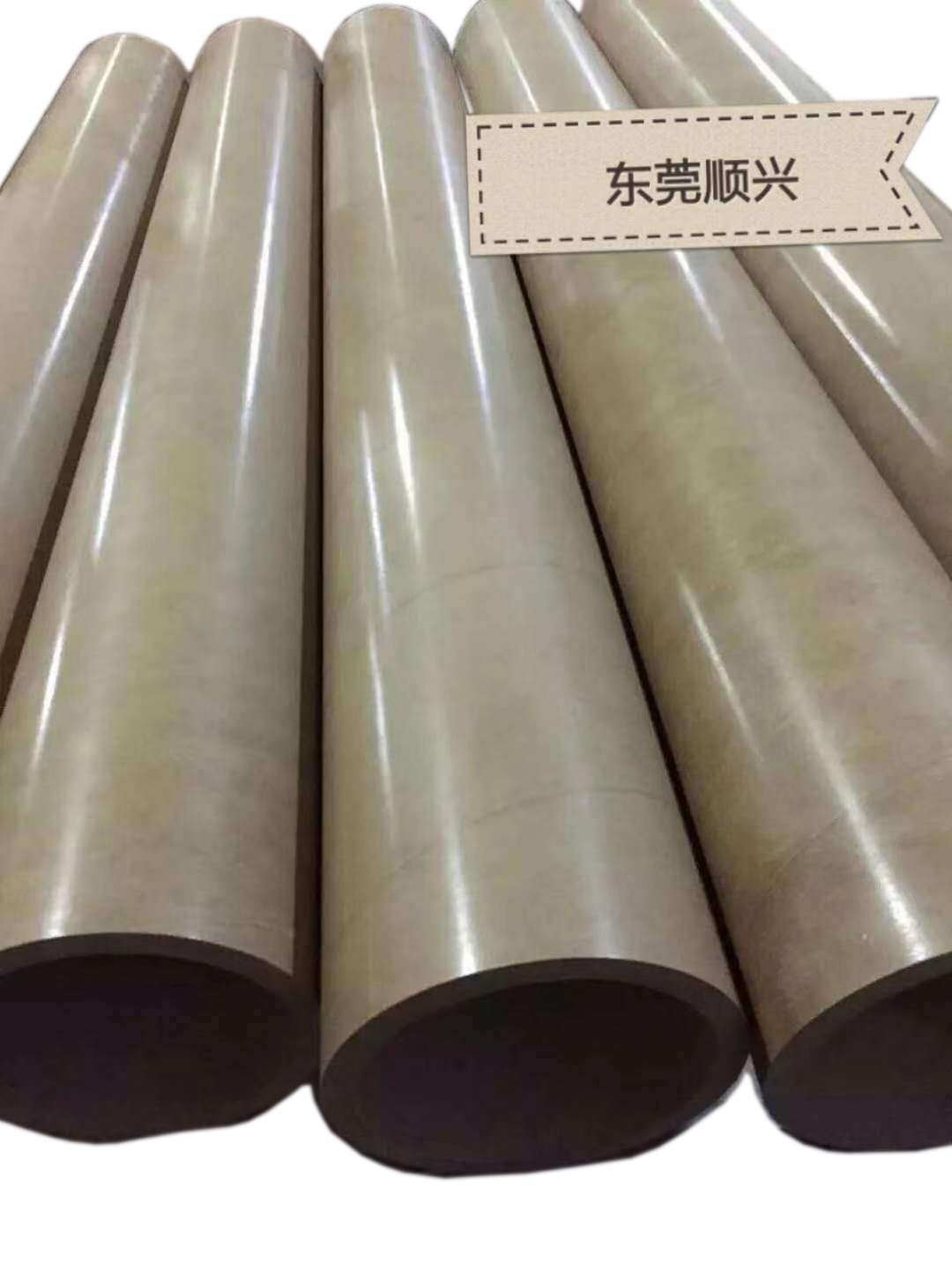

1. Professional high-strength paper tube polishing. After the paper tube is waxed, the surface of the paper tube is extruded by heating to make the surface of the paper tube seamless, and the surface is smooth and bright.
2. Outer diameter of light paper tube: 50-152mm.
3. Automatic alarm, fault prompt and convenient maintenance.
4, using PLC control system, touch screen operation interface, easy to learn.
5, can be customized according to customer needs.
The main technical parameters:
|
Mechanical model |
PG-152/PG-700 |
|
Polished paper tube diameter |
Φ76-152mm/φ300-700mm |
|
Polished paper tube thickness |
3-15mm |
|
Polished paper tube length |
1000-3000mm |
|
Speed of polishing paper tube |
2-10 m / min |
|
Number of abrasive belts |
12 groups / 14 groups |
|
Polishing method |
Shaftless polishing |
|
Loading / Unloading |
automatic / manual |
|
Vacuuming method |
Fan vacuuming |
|
Total motor power |
About 50KW |
|
Inverter |
Mitsubishi |
|
PLC controller |
Mitsubishi |
|
Operators |
1-2 people |
|
Input voltage |
380V |
|
|
